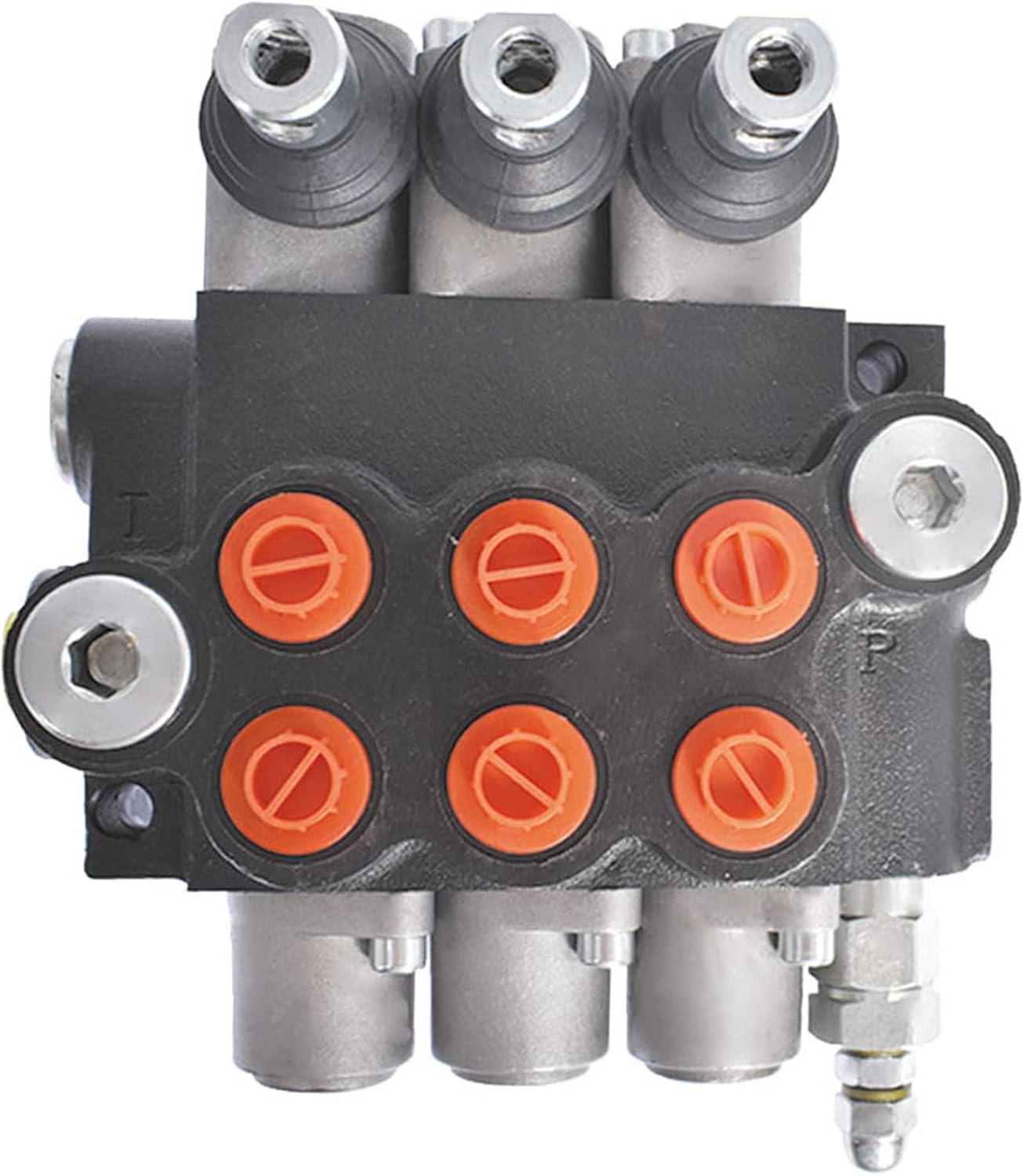

ALL-CARB Hydraulic Valve 3 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11GPM 3600PSI SAE Ports
Product details
| Management number | 229643862 | Release Date | 2026/05/31 | List Price | US$23.82 | Model Number | 229643862 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

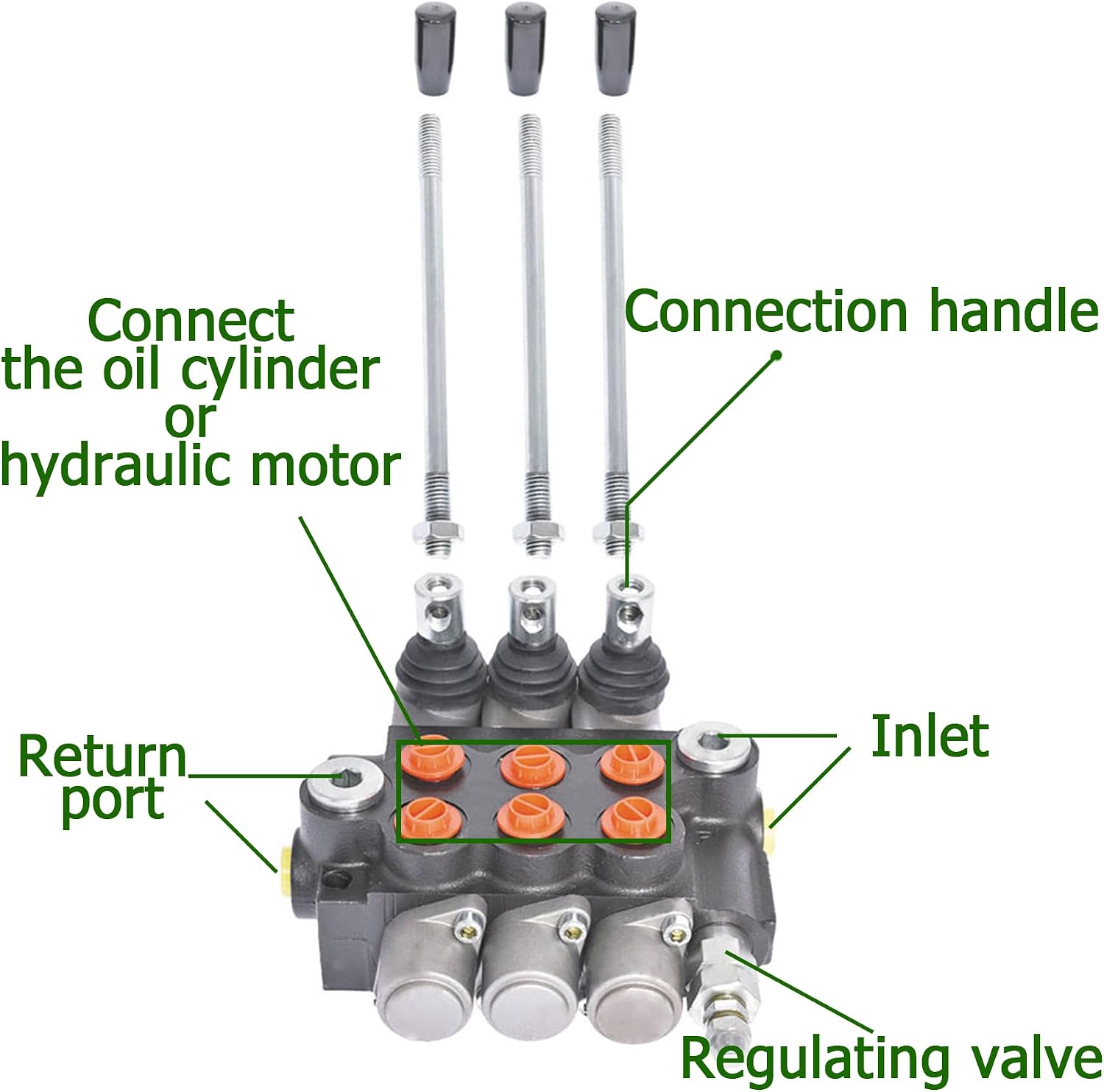

Hydraulic Valve 3 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11GPM 3600PSI SAE PortsSpecification:Flow Rating: 11GPM3600PSI MAX PressureP/A/B: SAE10(7/8-14)T/N: SAE10(7/8-14)Advantages:High-tensile cast iron monoblock constructionVertical or horizontal handle mount3 Spool valve with compact design allows for installations in tight areasAccuracy ground and hard chrome-plated spools assure a long lifeAll spools are standard double acting with spring return to neutral place which are ideal for double acting cylinders
- High-Efficiency - The relief valve range is up to 3600PSI and the maximum flow is up to 11GPM.
- Spring Return - All spools are standard double acting with spring return to the neutral place which is ideal for double-acting cylinders.
- Double Acting - Hydraulic control valve for operating double acting cylinders.
- Durable Quality - This hydraulic directional control valve comes with 3 spool, with cast iron construction for long-time use.
- Wide Application - Fit for small tractors, tractors loaders,log splitters, and etc.
| ASIN | B09L15BMN2 |
|---|---|
| Size | 3 Spool+11 GPM |
| Brand Name | marddpair |
| Unit Count | 1.0 Count |
| Valve Type | the relief valve |
| Thread Size | 7/8-14 |
| Thread Type | SAE 10 |
| Manufacturer | marddpair |
| Model Number | Dose Not Apply |
| Material Type | Cast Iron |
| Exterior Finish | Chrome |
| Item Dimensions | 8.66 x 8.27 x 3.94 inches |
| Number of Ports | 5 |
| Maximum Pressure | 3600 Pound per Square Inch |
| Specification Met | sae |
| Inlet Connection Type | SAE |
| Outlet Connection Size | 1.13 Inches |
| Outlet Connection Type | SAE |
| Manufacturer Part Number | Does Not Apply |
